Description

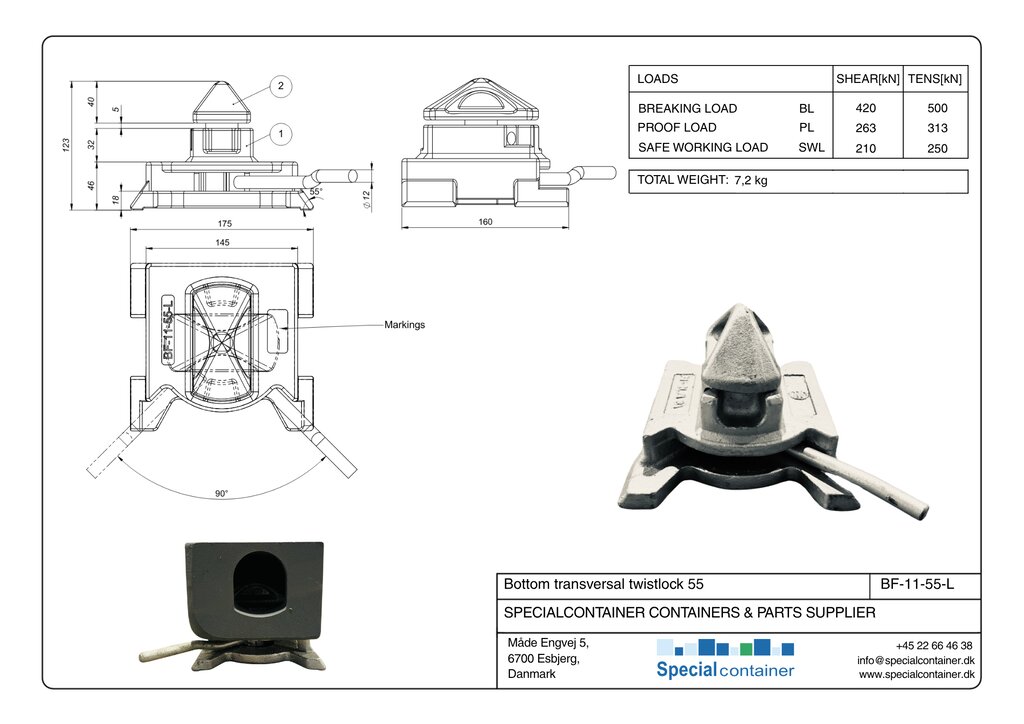

Bottom transversal twistlock 55° – secure fastening with access from the container end

The bottom transversal twistlock 55° is used to securely fasten containers to floors, decks, or other fixed surfaces. It can be welded directly onto the surface or used together with a Dovetail foundation, offering flexibility in installation.

The transversal design means that, once installed, the handle is positioned at the end of the container. This allows easy operation even when space along the sides is limited. The twistlock is opened and closed with the left hand.

Features and benefits:
• Secure fastening of containers to fixed surfaces
• Transversal version – operation from the container end
• Easy installation – can be welded directly or used with Dovetail foundation
• Galvanized surface for increased corrosion resistance
• Base height where corner castings rest: 46 mm
• Type approval certificate included at no extra cost
• Material certificate available in some cases – must be requested at time of order
• Always in stock or available locally from day to day

A practical solution for projects where containers need to be stable while remaining easy to handle in daily operations.
